HYBRID CARAVAN

• HEIGHT STANDARD: 2820mm
• HEIGHT WITH A/C: 3000mm
• WIDTH WALLS: 1945mm
• WIDTH GUARDS: 1990mm
• WIDTH AWNING (MAX): 2070mm
• LENGTH INTERNAL BENCH HEIGHT: 4280.5mm (14ft)
• LENGTH BODY EXTERNAL INCLUDING REAR BAR: 6340mm (20.8ft)
• LENGTH BODY EXTERNAL WITH REAR BIKES: 7010mm
• LENGTH DRAWBAR: 1022mm

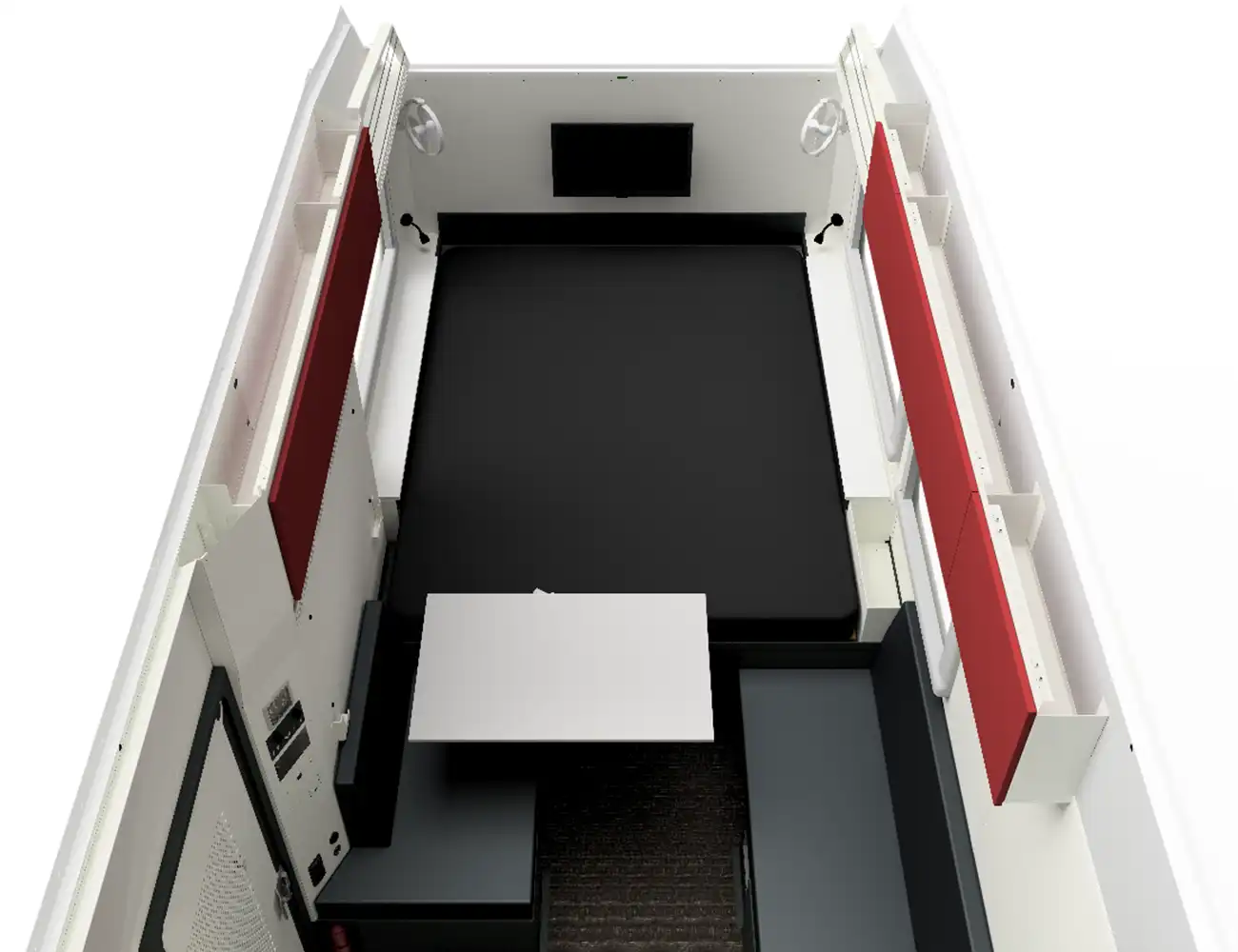

• Featuring standard E/W pocket spring queen bed
• Undermattress liner
• 6 person dinette, swing away table
• Twin fans
• Twin LED reading lights with USB sockets

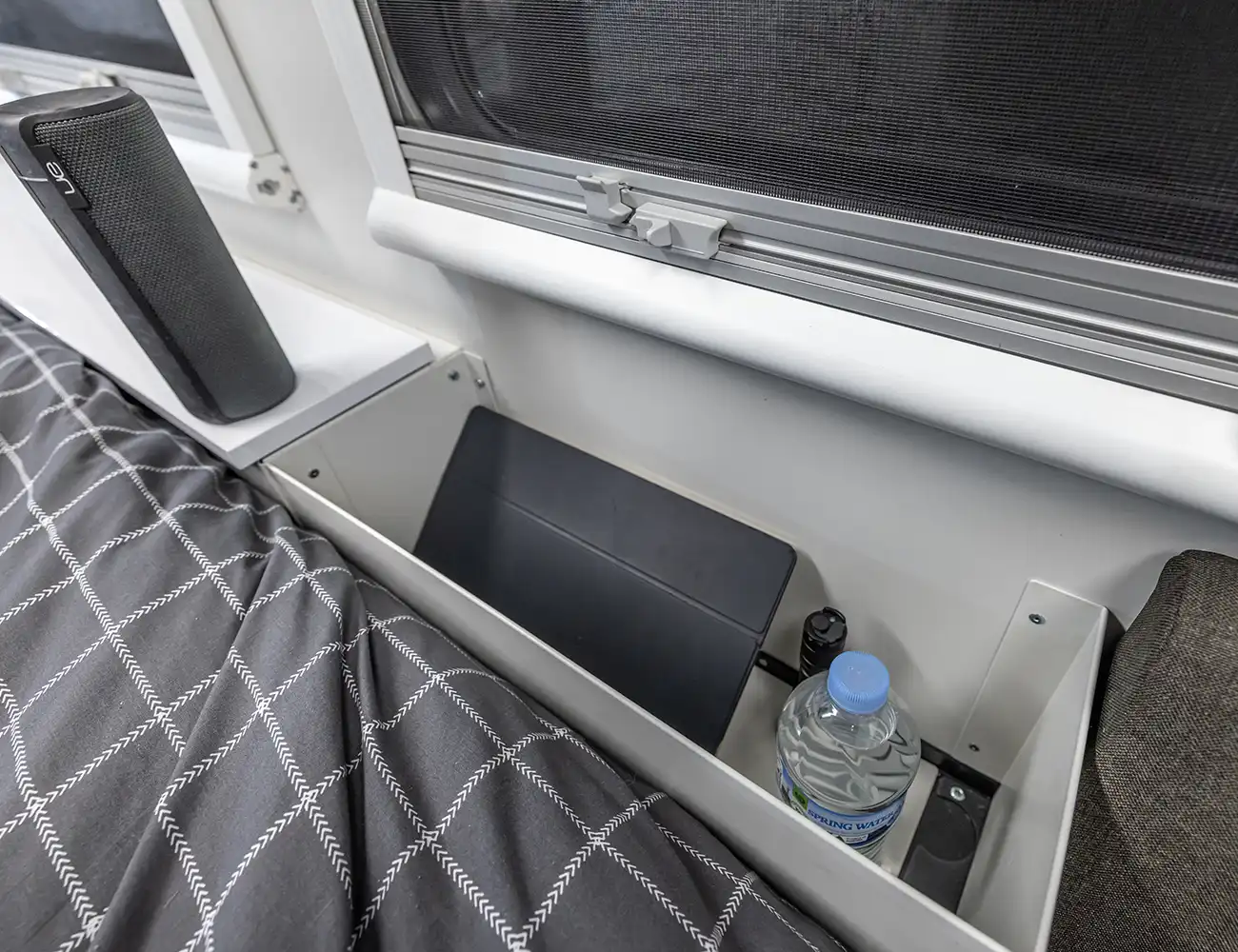

• Under seat storage
• 2 large tinted windows, integrated fly, privacy screens

• Starting Tare Weight Pioneer: ~ 1871kg
• Starting Ball Weight Pioneer: ~ 196kg
• ATM (Max Load): ~ 2600kg
• Payload: ~ 729kg

Starting weights are without additional options and with empty water tanks.

• Single handed operation with a flick-mixer and full-height shower rose
• Drain plumbed directly to onboard grey water tank, with external overflow connection for use at caravan parks
• Dometic Saneo CS; cassette, 16L black tank with a bowl adjustable by 90° in both directions
• Hassle free access to toilet cartridge allowing for on-the-go emptying and swapping. The cartridge setup is the easiest on the market to use and doesn’t require extra “washable” items that tanks or composting units require
• Integrated LED panel light with dimmer
• Shower mirror fitted to door
• Overhead towel hangers and rear wall caddy with drainage
• SOG ventilation to further improve the owners experience by venting the toilet storage externally

• Standard external kitchen, pull out S/S bench with generous pantry areas
• External 2 burner gas stove
• External 95L fridge dual zone fridge/freezer
• More useable awning space 3.9 x 2.5m with middle brace
• 2x 4.0kg gas bottles

Featuring twice the bench space of its smaller counterpart. The stainless-steel benchtop utilises advanced sheet metal techniques for a premium feel, including rounded edge. The powder coated, predominantly aluminium body makes access to storage a breeze, incorporating many drawers for the storage of all your kitchen needs.

The Premium Kitchen boasts a Thetford 3 burner (2×1.5KW, 1×2.5KW) glass topped stainless steel cooktop with Piezo ignition and matching stainless-steel sink with flick style tap, draining board and cutlery drawer located below. The kitchen utilises a lock in / lock out handle which accommodates single handed operation and slides on ball bearing runners. The integrated windshields are deployed by simply raising them into position. We’ve even fitted a bottle opener so you won’t have to go searching for your keys!

Our emphasis on outdoor cooking and preparation can be clearly seen by the positioning of the external kitchen in relation to the pantry (middle of awning) offering maximum protection and convenience.

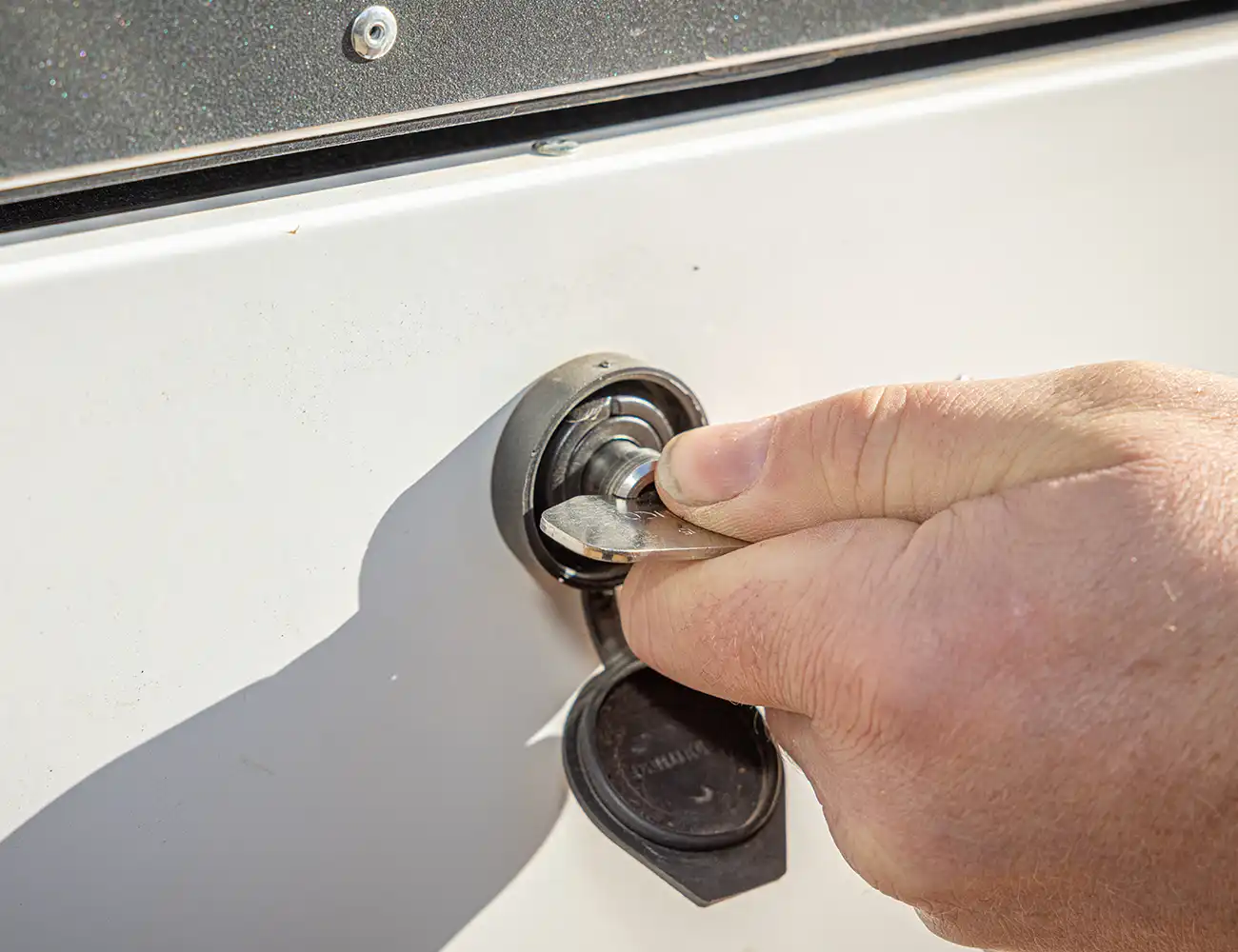

Large external pantry (~115L) with deep well-thought-out shelves to accommodate a broad variety of food packaging. Featuring gas strut assisted door, LED light and compression seals with lock.

It’s a great place to keep cooking aids – paper towel, spices, oil as well as standard pantry items. Within minutes, it feels natural reaching up to the panty to get the things you need.

• Internal selection of water source (tank(s), pressurised inlet and drawer from a jerry can/other)

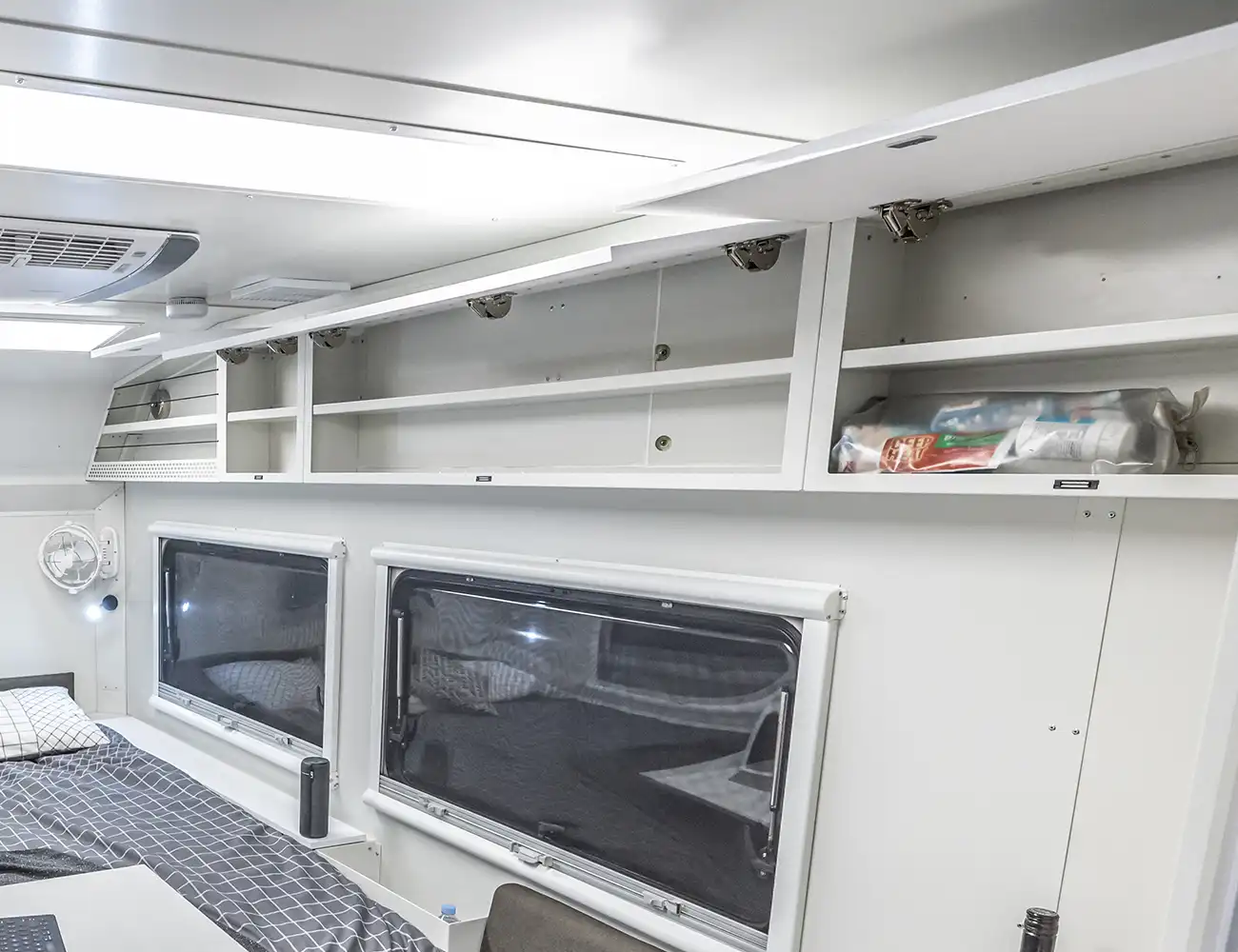

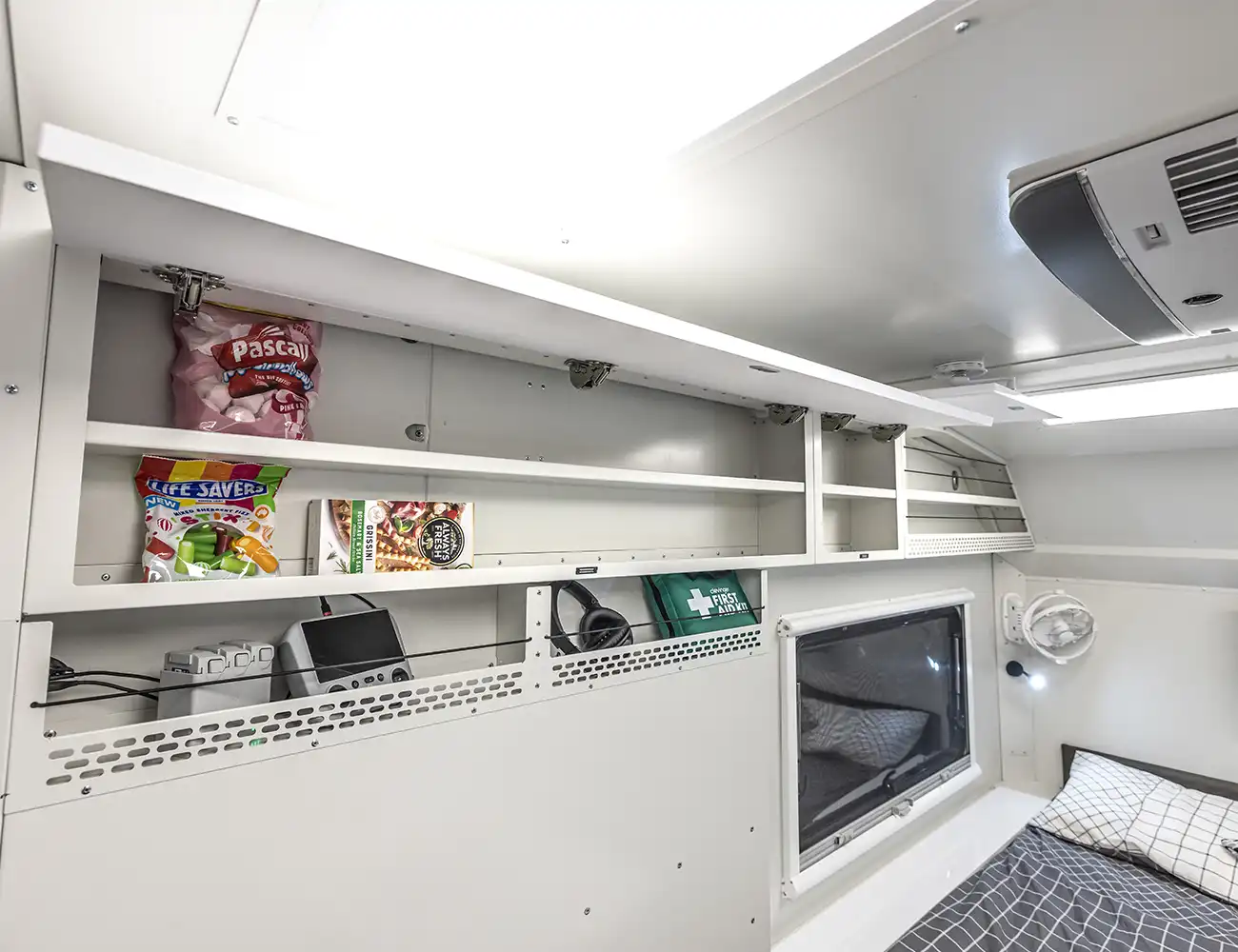

• 2 x large and deep overhead lockers
• 2 x 240V power points located door side on benchtop (not available if gas cooker option is fitted)
• Internal sink (11L capacity) plumbed directly to onboard grey water tank with flick mixer pressurised tap
• Hand pump including an isolated drinking filter
• The ergonomic kitchen bench is set at a ‘back friendly’ height, the same as most households with cut-in kick panels (room for your feet) allowing you to stand closer

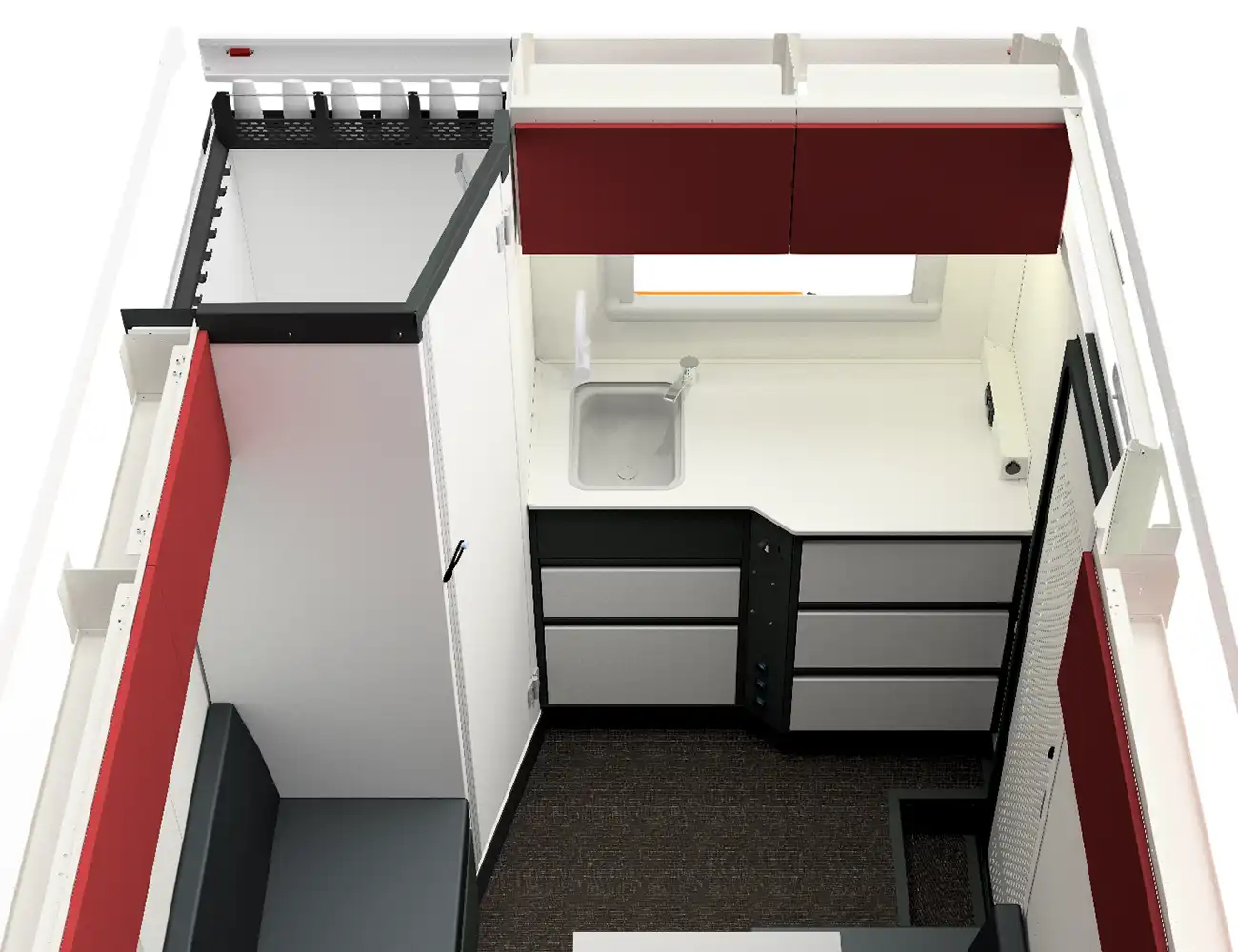

• Rear cabinetry total of 5 pull-out drawers: 1 x medium under-sink drawer (350D x 185H x 465W), 1 x large under-sink drawer (350D x 315H x 465D), 3 x medium drawers entry door side (450D x 245H x 495W)
• All drawers feature manual central locking allowing the user to engage all drawer locks easily and simultaneously prior to departure – an Industry first!

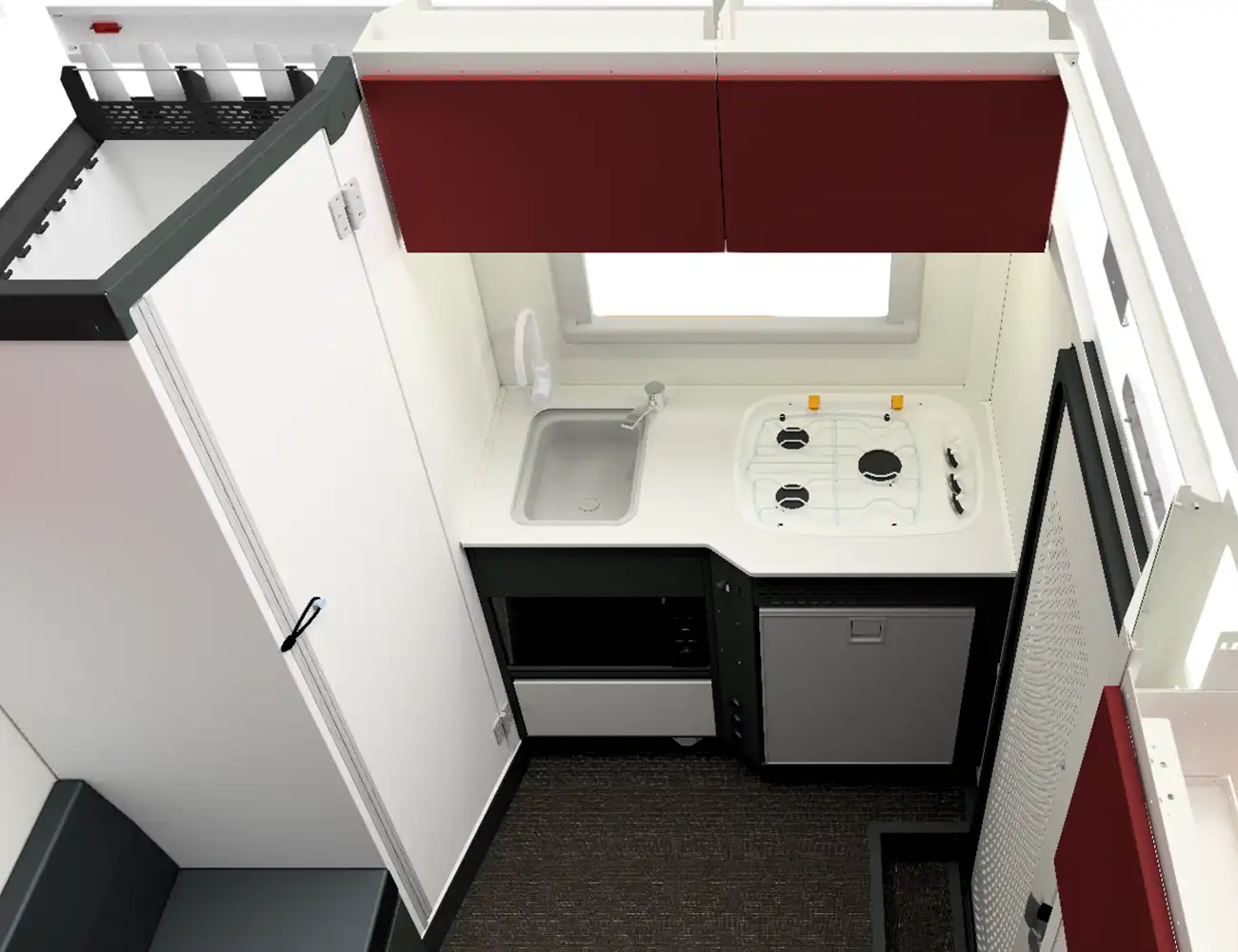

• 900W microwave located under sink. Replaces large drawer but retains medium drawer underneath (350D x 260H x 465W)
• Internal upright 85L fridge with dual fan condenser cooler kit. Replaces 3 x medium drawers door side
• Rangehood with external venting (required for gas cooker option). Hidden behind the door side overhead locker door. Slightly reduces the storage height but is a good option if you wish to use a portable induction cooker inside
• Thetford glass-top 3-burner cooktop with Piezo ignition and flame failure device on valves. Changes door side drawer sizes 1 x small (450D x 150H x 495W) and 2 x medium (450D x 245H x 495W) and requires fixed ventilation

Redvision® has been used to give you access to all the major appliance and onboard systems. Using the screen or your mobile phone (via Bluetooth app) you can switch inside and outside lights, view energy charge / consumption, check water capacity, turn on the inverter and easily deactivate the fridge(s) for storage, activate on board water pump and so much more.

This Australian designed and made electrical system accepts and regulates charge from solar, the tow vehicle and an external 240V source. All circuits have fuses and there is a master power switch for storage.

Batteries types and numbers (max 4) can be changed and upgraded, without the need to change any charging components.

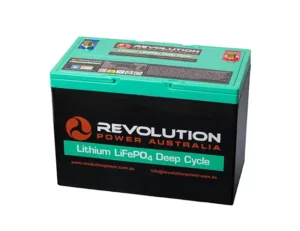

The Verve has premium Revolution Batteries specified as standard because they are engineered and extensively tested in the field. Revolution is an Australian family company that has decades of hands-on experience.

The Batteries are ultra-light at 11.5kg (standard Eco) and have Australia’s most advanced state of the art Battery Management System (BMS) inbuilt to ensure peace of mind, when it comes to battery protection and safety. Plus a 3-year replacement warranty.

• Presentation of electrical systems is at eye level as a part of the control tower including a cigarette plug, 2 x 240V and 2 x USB
• REDARC Manager 30 Multi Stage AC-DC battery charger and DC-DC charger with MPPT solar regulator, dual battery isolator, load disconnect controller
  REDARC RedVision with Bluetooth control for systems and management of power consumption
• 1 x 250Ah (200ah usable) ithium LiFePO4 batteries – Revolution Eco
• 2 x 200W solar panel mounted rearward on roof
• Anderson plug to tow vehicle with fuse
• External solar input Anderson plug
  Internal battery and solar isolation switches
• 240V circuit breaker power box
• External 240V outlet entry side behind guard
• Inverter and 240V source auto switching
• REDARC inverter (1000W)

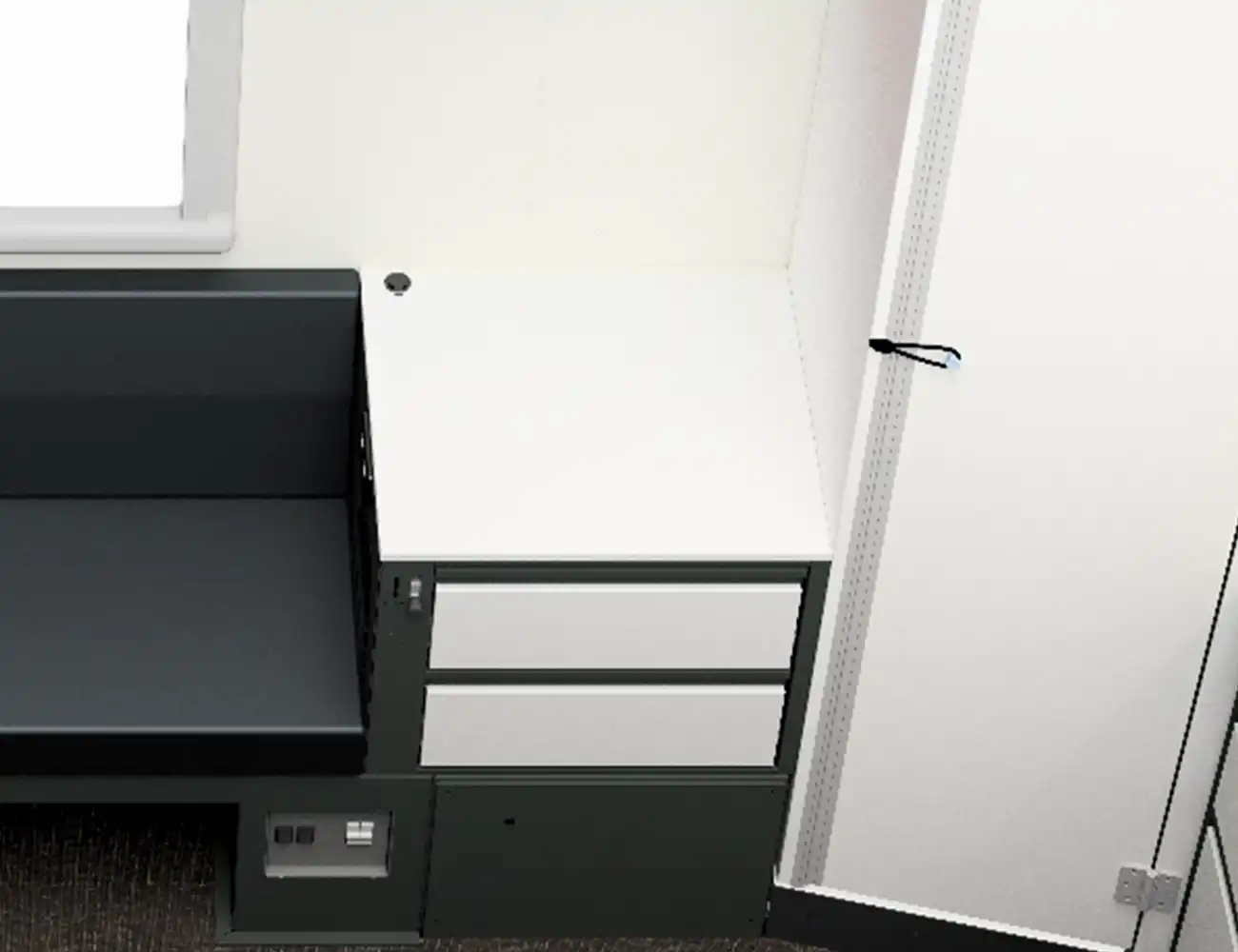

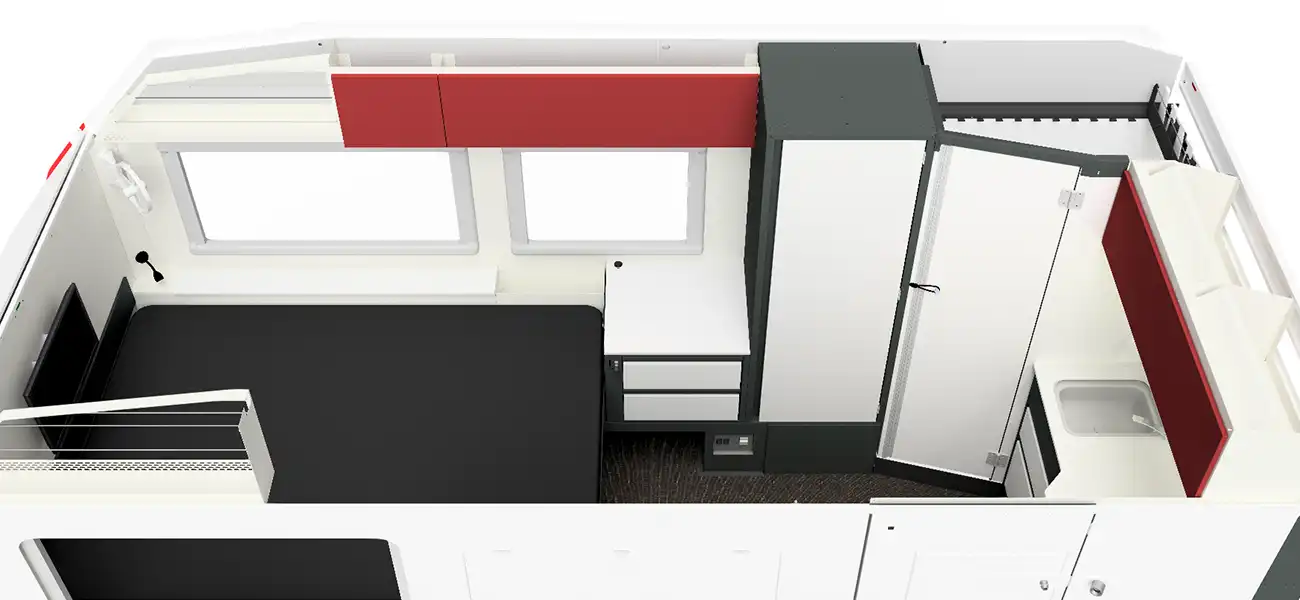

2 x large drawers (470W x 195H x 530D) with benchtop including 2 x USB and 2 x 240V power points along with an internal magazine holder with manual central locking. If fitted as 2nd module on N/S bed configuration, magazine holder not available

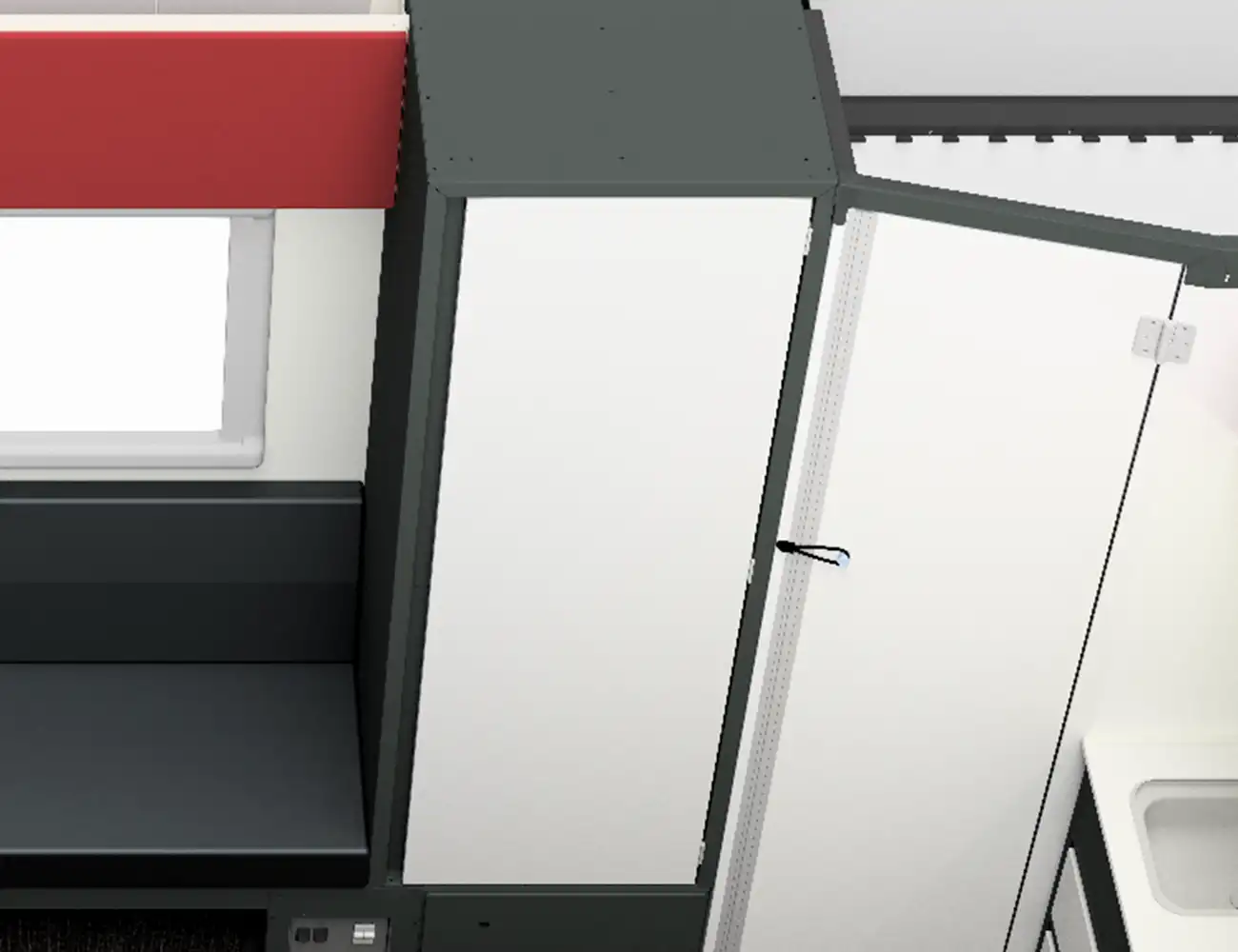

Full-height wardrobe with 3 x shelves (300W x 300H x 530D) and hanging space (295W x 530D x 1600H)
