The Onyx has a large roof/floor. Main features include a large 650mm fridge box with fridge box roof storage rack, swing away 2 burner stove in the large kitchen, 125 Litre water tank, and separate slide out 2 drawer pantry.

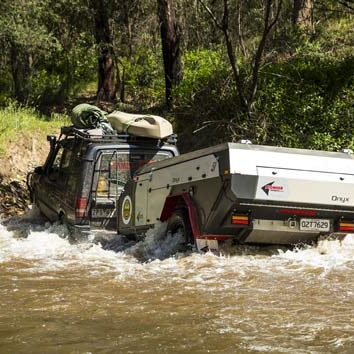

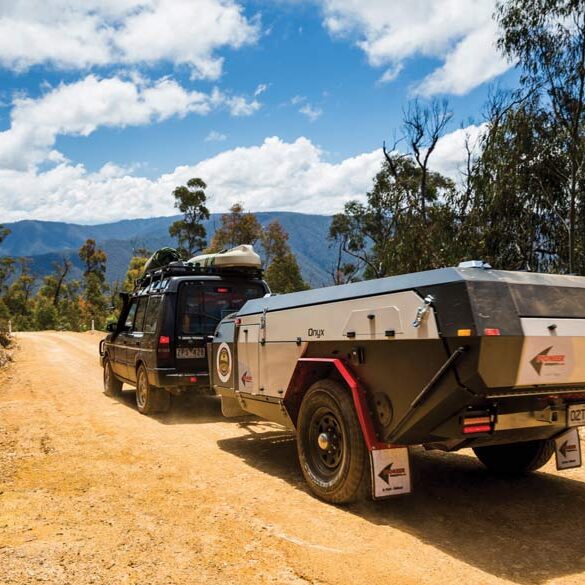

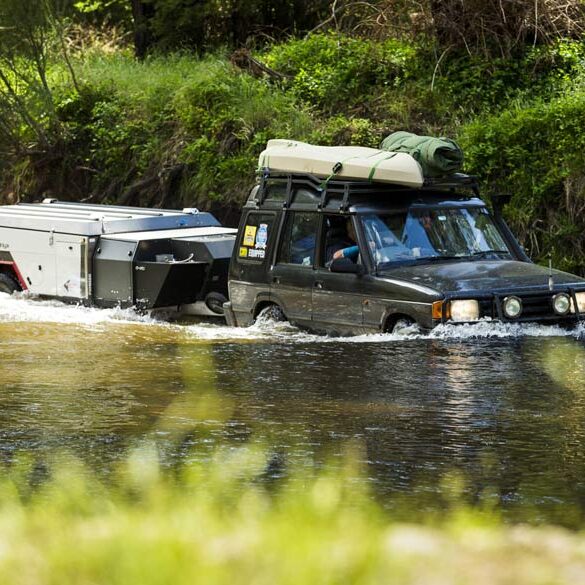

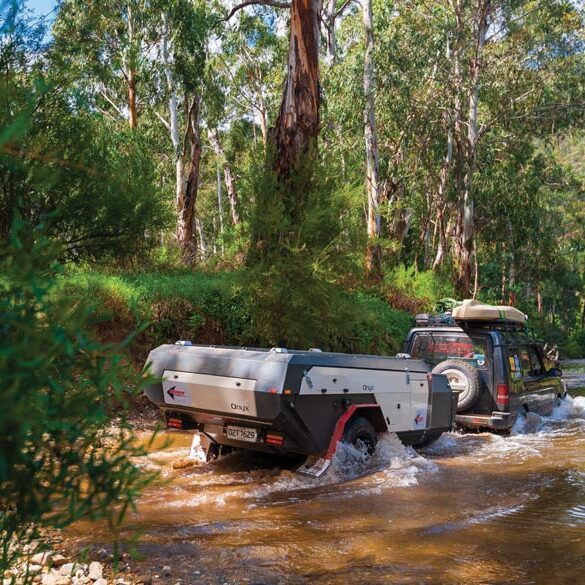

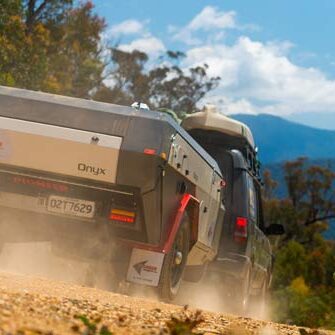

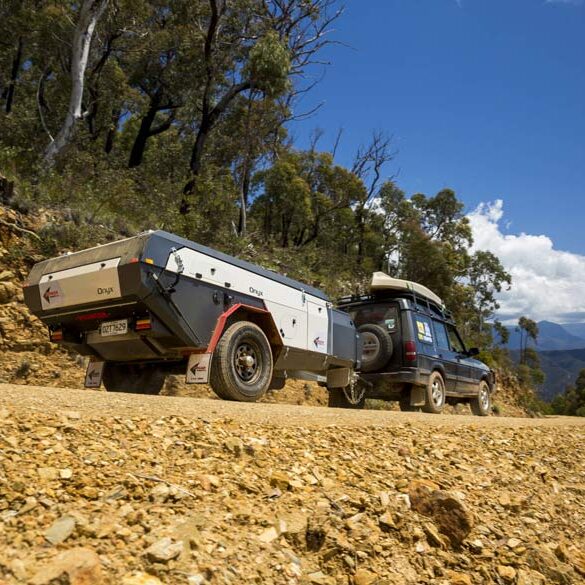

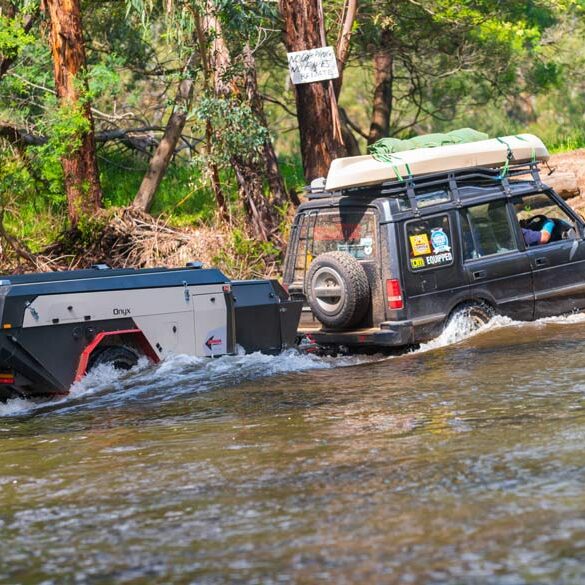

Go for an extreme off-road adventure during the day and then curl up on a queen-size bed at night with the feature-packed Onyx Hardfloor Offroad Camper Trailer. Check out what the “Camper Trailer of the Year” judges had to say.

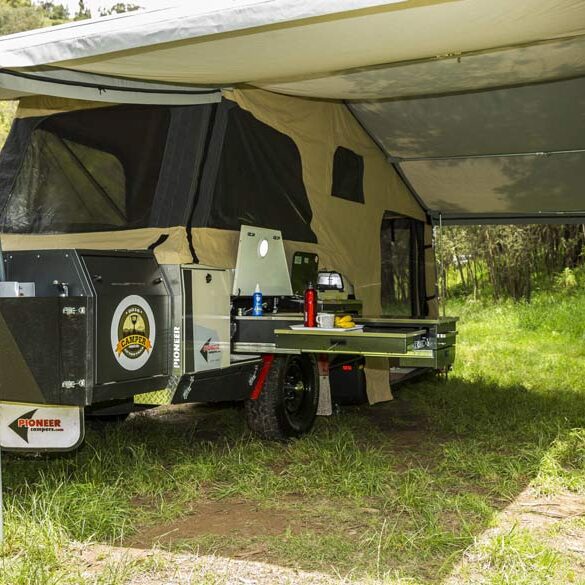

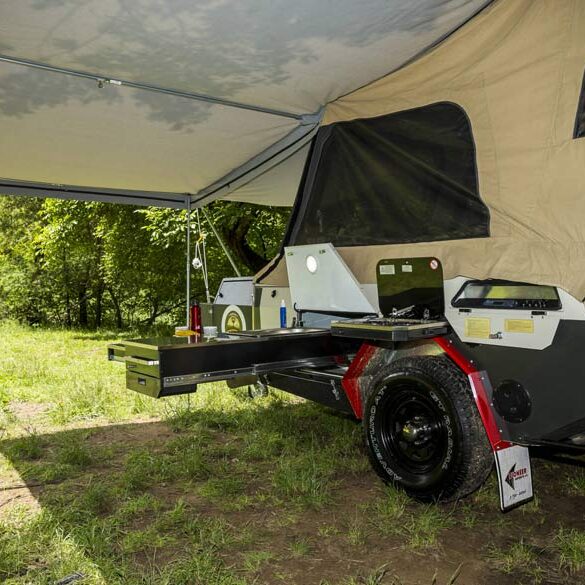

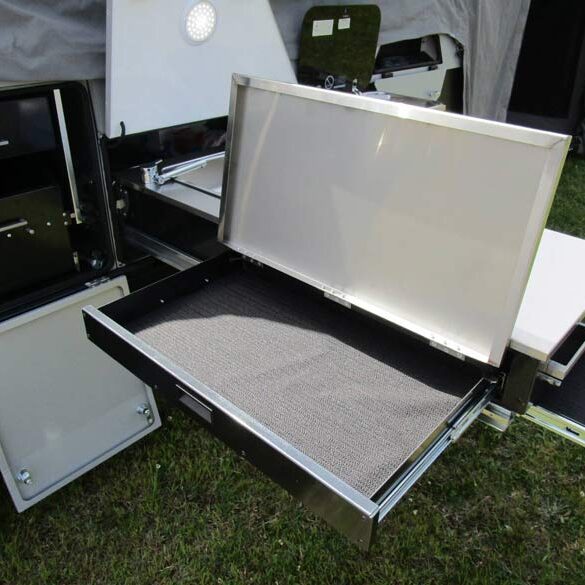

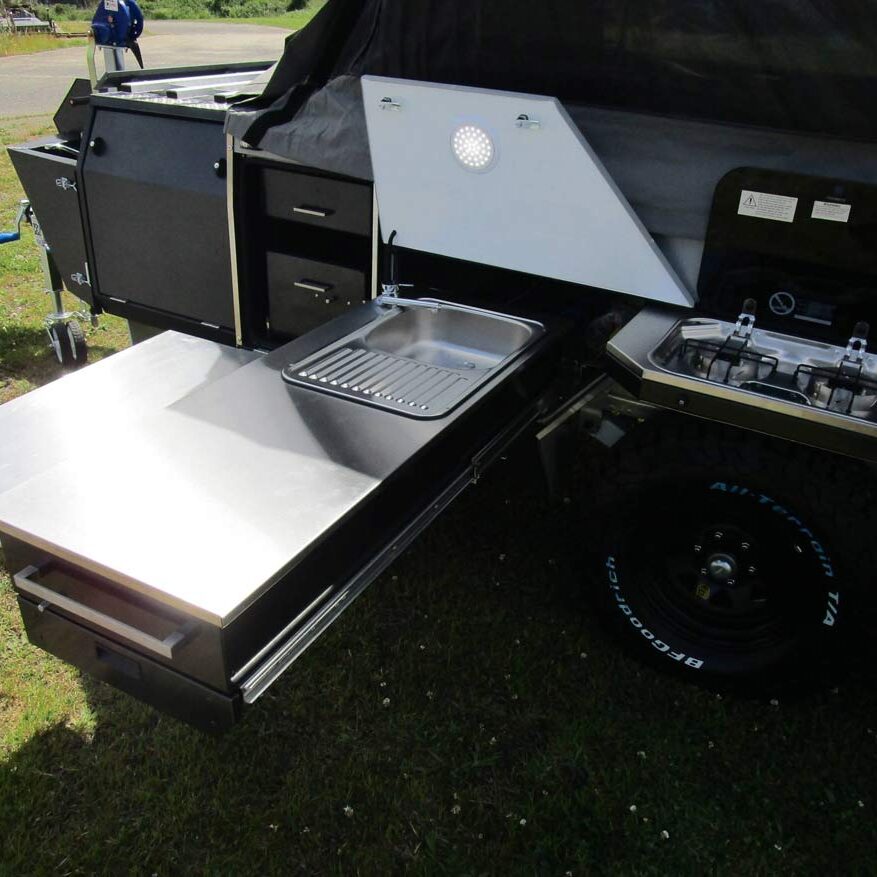

What do you get: Cooking is made easy with the Onyx Multi purpose Stainless Steel swing away kitchen. With a 2 burner stove and large crockery drawer. Water is 12v electronically pumped from the Onyx’s huge 125 litre heavy duty poly water tank with guard. Then there’s a standard 2 drawer pantry and large 679 litre fridge storage box right next to the kitchen (See Fridge Sizing)

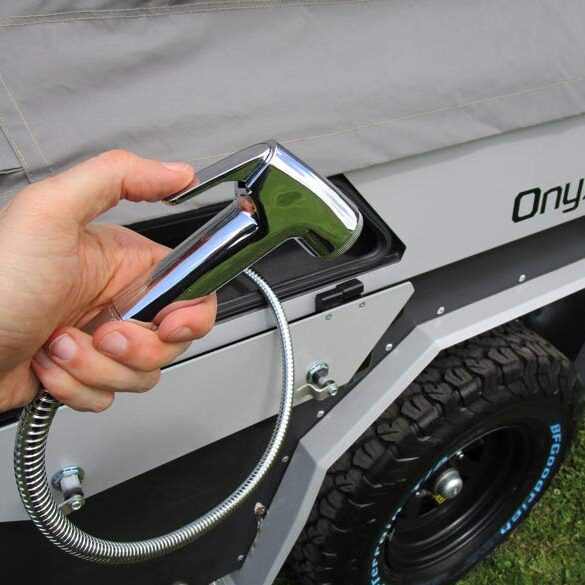

Enjoy a hot shower using the Onyx’s Truma hot water service. You will go further as this camper is fully equipped with 2x 9kg gas bottles and 2x 120A/hr AGM batteries that are fed by the integrated battery management system (BMS).

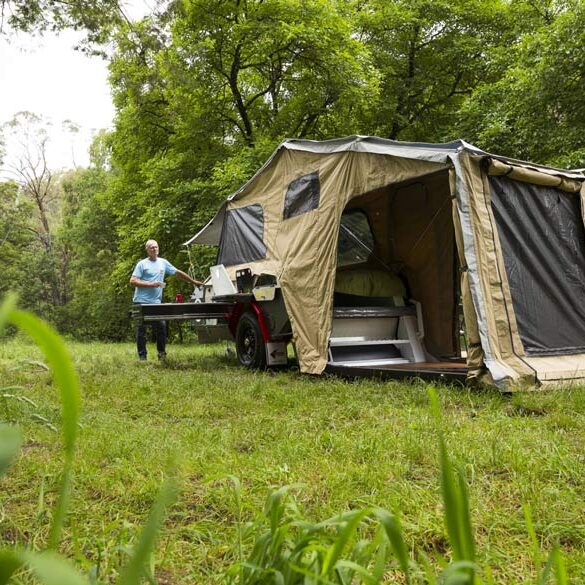

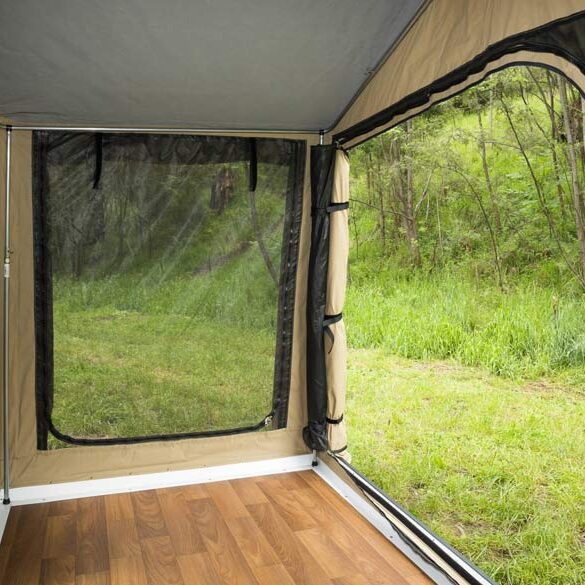

The Onyx has one of the largest internal floor footprints on the market with an overall internal living area of 2.6 by 1.7 meters. With winch assisted opening and closing, you’ll have your camper set up in no time. Leaving you time to get on with relaxing or exploring. The tent has a double size access door, guaranteeing you can enjoy the beauty of Australia from the comfort of your camper.
The Onyx also gets an additional 130 litre under floor storage container inside plus a 20 litre bed head compartment for personal effects, so your belongings will always be accessible and close at hand.
Body, Chassis and Suspension
| Body Construction is a Combination of 1.2mm Zincanneal and 2.0mm Marine Grade Aluminium Powder Coated | Standard |
| Heavy Duty Hot Dipped Galvanised Chassis for Extreme Off-road Conditions | Standard |

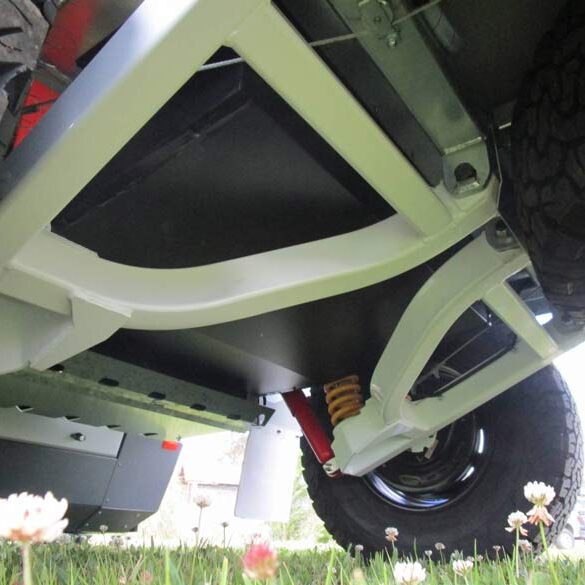

| Trak-Two Independent Trailing Arm Coil Suspension with Twin Tube Shocks | Standard |
| 4WD Twin Tube Gas Shock Absorber | Standard |
| Hitchmaster D035 Hitch | Standard |
| 5 Year Structural Warranty of Chassis and Suspension | Standard |
| 50mm Rear Mounted Hitch Receiver | Standard |
| Winch Assisted Closing | Standard |
Interior, Comfort and Entertainment

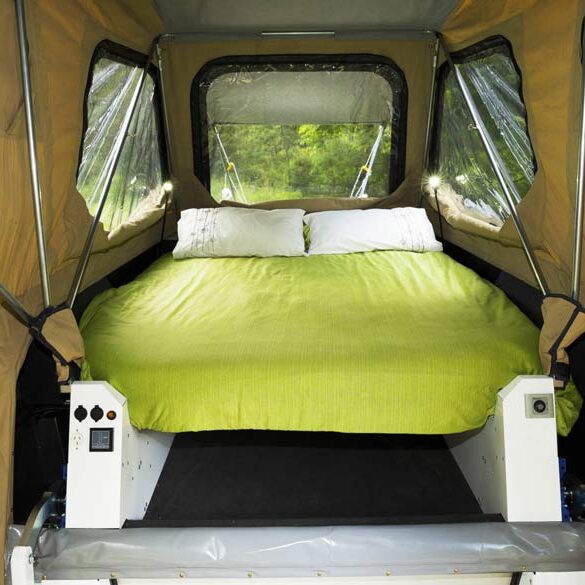

| 125mm thick Inner Spring Queen Mattress w/ Slated Swing Up Bed Base | Standard |
| Bedhead and Side Rests Lined with Leatherette, Underbed Floor Lined with Durable Carpet | Standard |
| CD/Tuner with USB, Bluetooth and TV Input c/w Exterior Remote Control, incl. 3 Speakers and USB 12V Charger and Data Transfer Outlet | Optional |
| Lockable Bedhead Storage (Standard Bedhead Storage) | Optional |
| 130L Underfloor Storage Box | Standard |
| Lid on Underfloor Storage Box | Optional |
| Underbed Storage Drawer, Accessible from Rear Door | Optional |
| Truma Gas Space Heater | Optional |
Storage

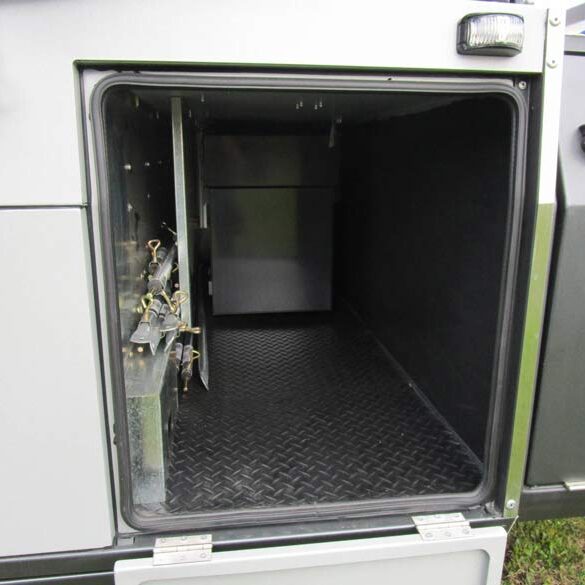

| 500L Front Storage Box, Dual Side Access | Standard |

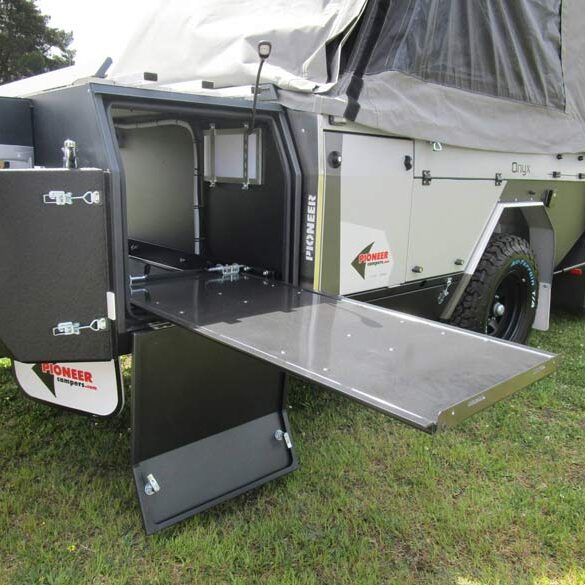

| Fridge Storage Box c/w Heavy Duty Fridge Slide with Lock and LED Stalk Light. Opening Dim. : W 560 x H 515 x D 990mm | Standard |

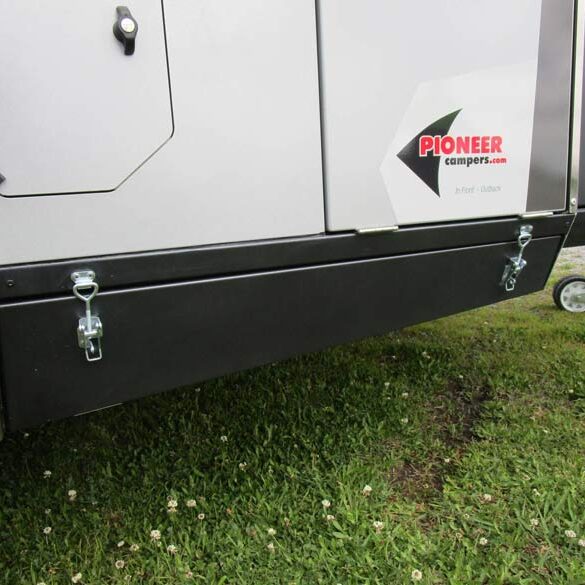

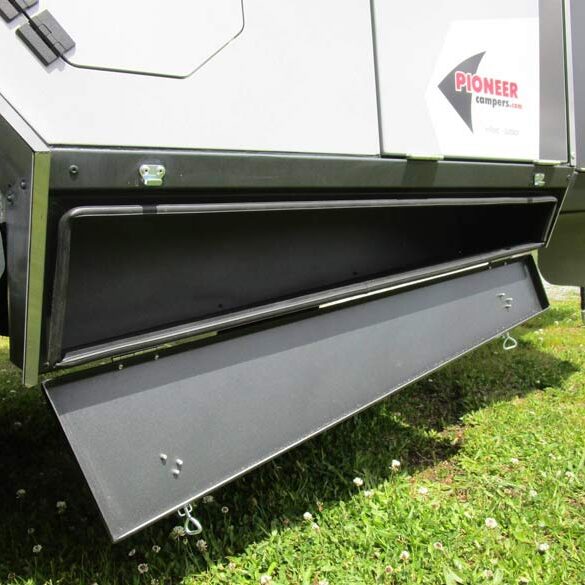

| 2 x 35L Wet Lockers Mounted Underside of Chassis | Standard |

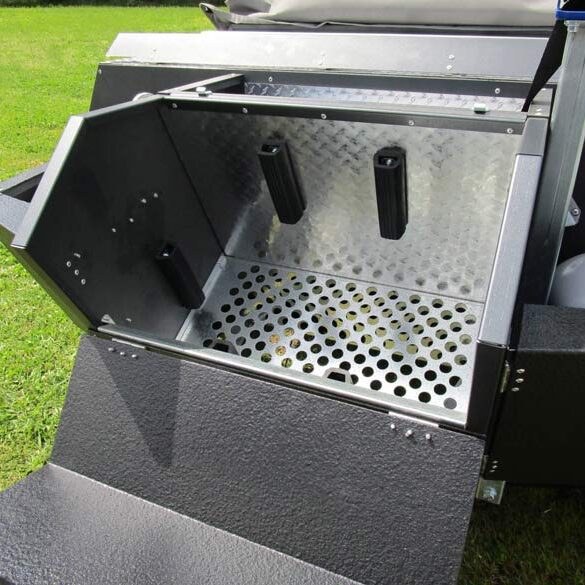

| Rhino Coated Stone Guard, 50L Wood Box and 3x Jerry Holders | Standard |
| Pole Storage Compartment | Standard |
| Roof Storage Rack (Top of Fridge Box) | Standard |
| Roof Storage Rack 200mm Deep (Top of Fridge Box) | Optional |
| Generator Heavy Duty Slide with Lock | Optional |
Wheels and Brakes
| 12” Al-ko Electric Drum Brakes and Mechanical Hand Brake | Standard |
| 16 x 8” 265/75 – 6 Stud Black Trak Steel Rims (0) | Optional |
| 16 x 8” 265/75 – 6 Stud Black Alloy Rims (0) | Optional |
| Rims Supplied w/ BF Goodrich K02 A/T Tyres | Optional |
| Customer Supplied Wheels and Tyres | Optional |
| Wheels and Tyres to Match Tow Vehicle | Optional |
| Spare rim to match mounted under camper trailer | Optional |
| Ark XO Dual Wheel Jockey Wheel | Standard |
Floor and Roof
| Composite Floor Construction Comprising of Fibre Glass Panel, Surrounded by 1.2mm Zincanneal Steel and 2.0mm Aluminium Powder Coated Black: 1.7 x 2.6m Long | Standard |
| Floor Lined with Wood Grained Hard Wearing Vinyl | Standard |
| Heavy Duty Rails on Roof for Load Carrying | Standard |
| Horizontal and Vertical Adjustable Tie Down Brackets | Optional |
Dimensions and Weight
| Body Length | 2900mm |
| Body Width | 1850mm |
| Overall Length | 4950mm |
| Travel Height | 1435mm |
| Internal Living | 5.3 x 1.7m |
| Bed Size | Queen (125mm) |
| Tare Weight | 1340kg |
| Towball Weight | 145kg |
| Rim Size | 16 x 8 |
| Tyre Size | 265/75 R16 |
Kitchen
| 2 Burner Model | Optional |
| Swing Away Bench Model | Optional |
| Swing Away Stove Model | Standard |
| Chrome Hot/Cold Water Tap, Connected to Electric Pump | Standard |
| Manual Hand Pump – Chrome (external, at Front of Camper) | Standard |

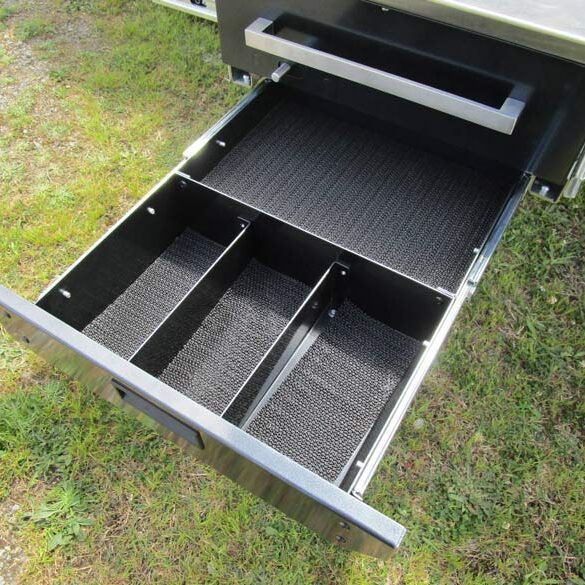

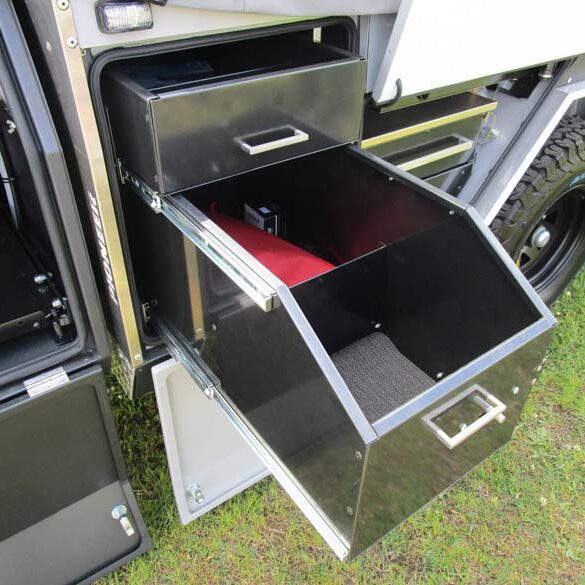

| Slide Out 2-Drawer Pantry (95L) | Standard |
| Large Slide Out 2-Drawer Pantry (135 L) | Optional |
| 3000mm Quick Connect Stainless Steel Flexible Gas Line | Standard |
| 2x 9kg Gas Bottles (incl. Padlockable Cradles) | Standard |
| Carbon Filter on Kitchen Cold Tap | Optional |
Canvas
| Awning | Standard |
| Ensuite | Optional |
| Kids Room | Optional |
| Draft Curtain | Optional |
| Reflective Blanket | Optional |
| Sq. End Upgrade | Optional |
| Quick Awning | Optional |
| Wall A, B, C, D and E | Optional |
| All Walls in Canvas | Optional |
| All Walls in Mesh | Optional |
Water
| 125L Food Grade Poly Rear Mounted Water Tank with Guard | Standard |
| Secondary Water Tank (70L) | Optional |
| Inline Particle Water Filter | Standard |
| Water Level Indicator | Standard |

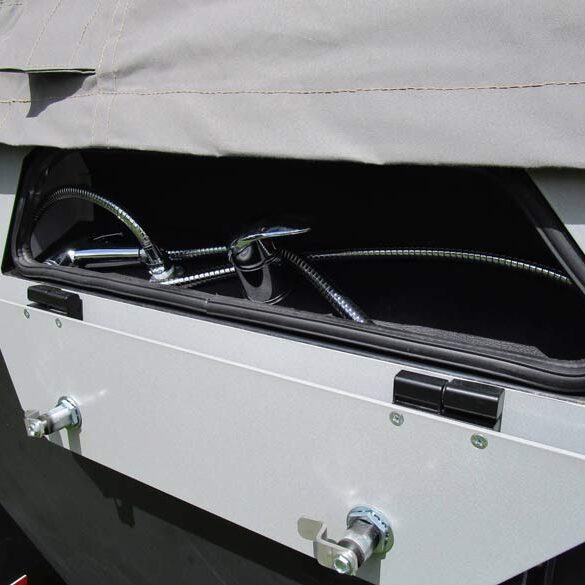

| Truma Gas Hot Water System incl. Shower and Kitchen Hot/Cold Tap | Standard |
Batteries, Power, Lighting, Fridge and Solar
| Single 12V 100 A/H Lithium Battery (Requires 1230 BMS) | Optional |
| Dual Rear Mounted 120 A/H AGM Deep Cycle Batteries | Standard |

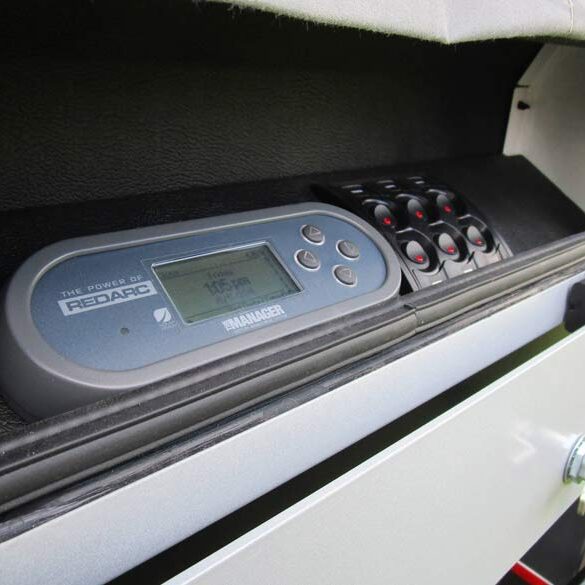

| Redarc 1230 – 30 Amp Battery Management System | Standard |
| Redarc 1000W Pure Sine Wave Inverter | Optional |
| Redarc 2000W Pure Sine Wave Inverter | Optional |
| Anderson Plug Cable, Charging Cable from Vehicle to Camper (Tow Vehicle Installation Not Included) | Standard |
| 12V Acc. Outlet Round – Interior | Standard |
| Dual USB 12V Charge – Interior | Standard |
| 240V Setup – Interior (1) and Exterior Outlet with Earth Leakage and Circuit Breaker | Standard |
| 240V Interior Outlets (Additional to 240V Setup) | Optional |
| Dual Reading LED Stalk Lights | Standard |
| Kitchen LED Light | Standard |
| LED Step Light, for Steps to Bed | Standard |
| LED Tail, Indicator Lights – Fully Submersible | Standard |
| Solar Input Socket (Merit) | Standard |
| REDARC 120W Monocrystalline Portable Folding Solar Panel w/ 5m Cable and Bag | Optional |
| 110L Evakool Fridge RFB110-FF | Optional |
Camper Trailer of the Year Finalist – Pioneer Onyx
Camper Trailer Australia takes a good look around the Onyx.
Hard-Floor Camper Design and Testing
On behalf of the team at Pioneer we are proud to introduce the new generation of hard-floor campers. With years of design, engineering and manufacturing experience and the constant support of our experienced off road dealer network, we believe the new generation marks a significant step forward in hard-floor camper design. If you have an enjoyable, stress free off-road adventure we have done our job.
Research
Before the 2013 Pioneer Camper range was envisaged an extensive research program was undertaken. We drew upon the previous model campers, feedback from customers and dealers and combined this with our experience in the manufacturing industry to develop a sound understanding of what we had to do to create a first class off-road camper trailer.
Ideation
After conducting our research the design phase progressed to conceptual work and ideation. This is where the bones of the camper are laid out and the functional aspects discussed: concurrently ideas of shape and form progress with a tough, rugged, but sleek exterior and modern, airy, clean and comfortable interior driving the look and feel. What resulted is what we feel to be the most practical, usable outcome, which will ultimately make your off road adventure more satisfying.
Design Development
3D computer aided design (CAD) software affords the ability to build the camper in a virtual environment with accurate representation of what will be manufactured on the factory floor. Pioneer’s extensive manufacturing capabilities then enable us to promptly prove these designs and adjust accordingly. Prototypes are then constructed and real world testing can begin.
Testing and Refinement
There is no substitute for real world testing. So our entire new generation camper range has been subjected to a myriad of server scenarios including water and dust ingress, extreme weight loading and corrugation testing. Design and engineering is also about recognizing a tried and tested design and as such the Pioneer chassis has only undergone minor refinement, while the Grafta independent trailing arm suspension on Kevlar dry bushes remains unchanged from that which has served Pioneer campers for hundreds of thousands of kilometers! Since partnering with Trakmaster last year the decision was made to incorporate the Trak 2 trailing arm suspension, a more refined product, that has afforded the customer a slight weight saving, increased durability and extra travel.
